Showing 121–132 of 856 results

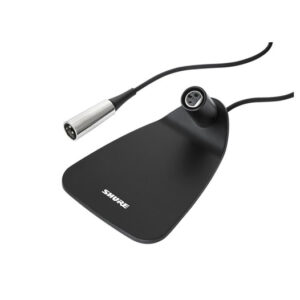

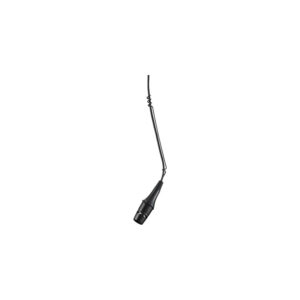

CVB
Specifications Cartridge Type Electret Condenser Polar Pattern CVB/O Omnidirectional CVB/C Cardioid Frequency Response 70–16000 Hz Output Impedance 180 Ω Sensitivity open circuit voltage, @ 1 kHz, typical CVB/O –28 dBV/Pa[1] (40 mV) CVB/C –32.5 dBV/Pa[1] (23 mV) Maximum SPL[2] 1 kHz at 1% THD CVB/O 117 dB SPL

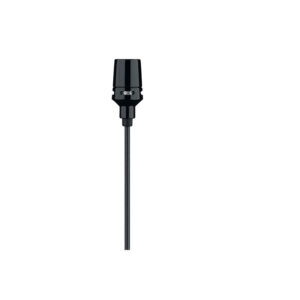

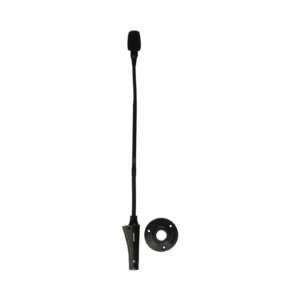

CVL-B-C TOG
CVL Specifications Type Electret Condenser Frequency Response 50 to 20,000 Hz Polar Pattern Unidirectional (Cardioid) Output Impedance @ 1 kHz, typical 600 Ω Audio Output Level -43.5 dBV/Pa Signal-To-Noise Ratio[1] @ 1 kHz 72 dB Maximum SPL[1] 1000 Ω load, @ 3% THD 139.0 dB Dynamic Range[1] @ 1

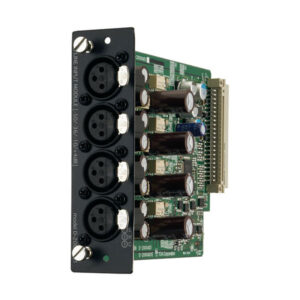

D-2000AD1
*0 dB = 0.775 V Input 4 channels, Mic/Line selectable Mic: -50/-36 dB*, 2.6 kΩ, electronically-balanced Line: -10 dB*, 2.6 kΩ/+4 dB*, 7 kΩ, electronically-balanced Connector: XLR-3-31 equivalent Phantom power supply (48 V DC, can be used when set for the Mic) Ground lift switch A/D Converter 24 bit Sampling

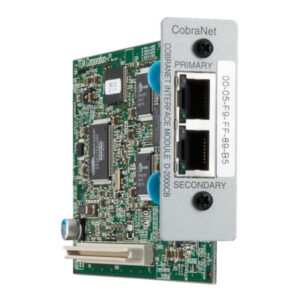

D-2000CB
Network I/F CobraNet: 100BASE-TX, PRIMARY/SECONDARY 2 system, RJ45 connector, Enables decentralized installation, Audio transmission only Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable To be connected via the specified switching hub Note: This network should be completely independent of other LAN. Number of D-2008SP connection: Max.

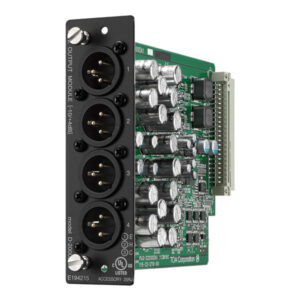

D-2000DA1
* 0 dB = 0.775 V Output 4 channels, +4 dB*/-10 dB* (changeable), adaptable load of 600 Ω or more, balanced (electronically-balanced)/unbalanced (changeable), XLR-3-32 equivalent D/A Converter 24 bit Sampling Frequency 48 kHz Frequency Response 20 Hz – 20 kHz, ±1 dB Dynamic Range 104 dB (IHF-A weighted) or more

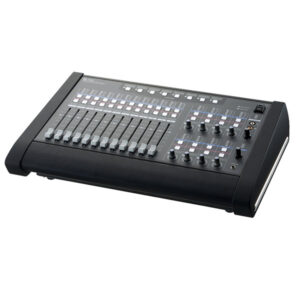

D-2012AS
Finish Side Panel: MDF, black, paint, mat Armrest: MDF, synthetic-leathered, black, mat Decorative panel: Stainless steel, silver Dimensions 505 (W) × 127.5 (H) × 333.4 (D) mm (19.88″ × 5.02″ × 13.13″)(assembled) Weight 2.3 kg (5.07 lb) (assembled: 7.5 kg (16.53 lb)) Accessory Assemble screw…11, Rubber foot…4, Rubber foot mounting
