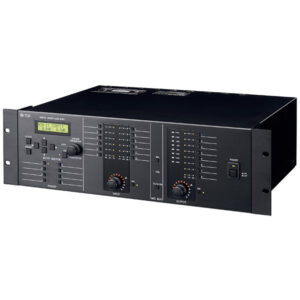

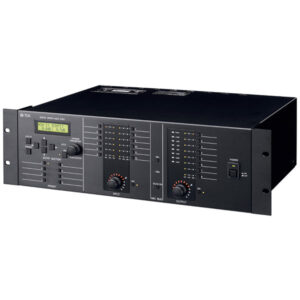

* 0 dB = 0.775 V Power Source 230 V AC, 50/60 Hz Power Consumption 27 W Frequency Response 20 Hz – 20 kHz, ±1 dB (+4 dB* input) Input Max. 12 channels, modular construction (modules optional) Output Max. 8 channels, modular construction (modules optional) Signal Processing Feedback Suppression Function

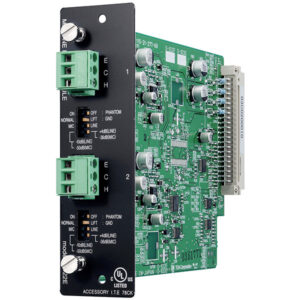

* 0 dB = 0.775 V Input 2 channels, Mic/Line changeable Mic: -50/-36 dB*, 4.7 kΩ, electronically-balanced, removable terminal block (3 pins) Line: -10/+4 dB*, 10 kΩ, electronically-balanced, removable terminal block (3 pins) Phantom power supply (can be used when set for the microphone) 15 V: D-901 (option), DP-K1 (option),

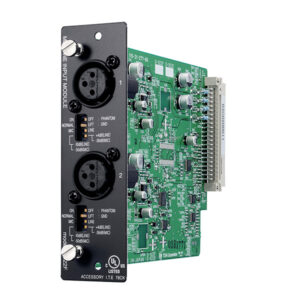

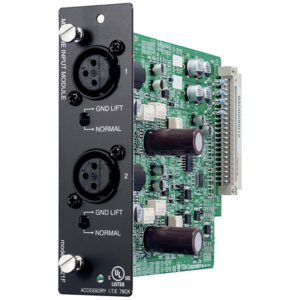

* 0 dB = 0.775 V Input 2 channels, -50/-36/-10/+4 dB* (Selectable with the DIP switch.), 4.7 kΩ, electronically-balanced, equivalent to XLR-3-31 type Phantom power supply (can be set with the DIP switch) 15 V: D-901 (option), DP-K1 (option), D-2008SP (option) 12 V: SX-2100AI (option) Ground lift switch (can be

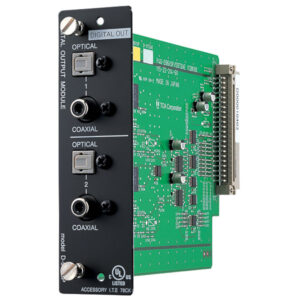

Output: Stereo 2 channel line (with splitter, can be output to each pair of optical output and coaxial output in Parallel), 0.5 V (p-p) 75 Ω, Coaxial RCA jack × 2, Square optical connector × 2 Applicable Format S/PDIF (2 channel multiplexed) Sampling Frequency 48 kHz Finish Panel: Pre-coated steel
