Showing 673–684 of 856 results

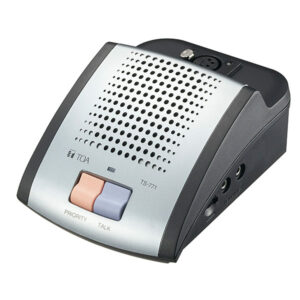

TS-771
Power Source 35 V DC, under 30 mA (supplied from Central Unit) Output Headphone/Recording: 32 Ω (headphone)/10 kΩ, -20 dB* (recording), unbalanced, mini jack (with VR) Internal speaker: 130 Ω, 200 mW Contact output: 24 V DC, max. 50 mA Control Speech button: Microphone, speaker on-off control by speech switch

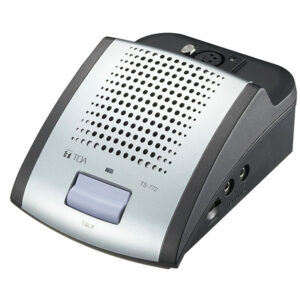

TS-772
Power Source 35 V DC, under 30 mA (supplied from Central Unit) Output Headphone/Recording: 32 Ω (headphone)/10 kΩ, -20 dB* (recording), unbalanced, mini jack (with VR) Internal speaker: 130 Ω, 200 mW Contact output: 24 V DC, max. 50 mA Control Microphone, speaker on-off control by speech switch Operating Temperature

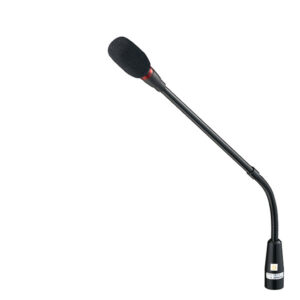

TS-773
Type Electret condenser microphone Directivity Unidirectional Rated Impedance 1.8 kΩ Rated Sensitivity -37 dB (1 kHz 0 dB = 1 V/Pa) LED Indicator Speech indicator (ring type) Frequency Response 100 – 13,000 Hz Output Connector Combined type of XLR-4-32 Finish Gooseneck: Stainless steel, black Other: ABS resin, black Weight 90
TS-774
Type Electret condenser microphone Directivity Unidirectional Rated Impedance 1.8 kΩ Rated Sensitivity -37 dB (1 kHz 0 dB = 1 V/Pa) LED Indicator Speech indicator (ring type) Frequency Response 100 – 13,000 Hz Output Connector Combined type of XLR-4-32 Finish Gooseneck: Stainless steel, black Other: ABS resin, black Weight 105

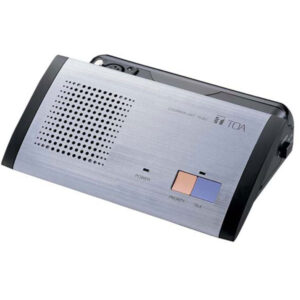

TS-801 Chairman Unit
Power Source 7.4 V DC (battery), 9 V DC (AC adapter) (supplied from BP-900 battery (option) or AD-0910 AC adapter (option)) Current Consumption Max. 270 mA Infrared Emitter/Detector Wavelength 870 nm (AM: Brightness modulation) Modulation Method Frequency modulation Carrier Frequency Transmission: Audio channel 1: 7.35 MHz Audio channel 2: 8.10
