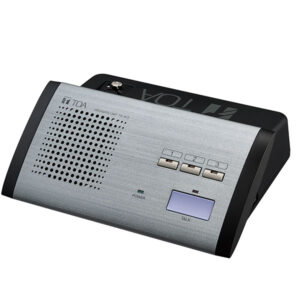

TS-912 Delegate Unit
Power Source 24 V DC (supplied from the TS-918 Expansion Unit (option)) Current Consumption Max. 60 mA Modulation Method Frequency modulation Carrier Frequency Transmission: Audio channel 1: 7.35 MHz Audio channel 2: 8.10 MHz Audio channel 3: 8.55 MHz Audio channel 4: 9.15 MHz Control channel: 6.45 MHz Reception: Base
TS-918 Expansion Unit
Power Source 100 – 240 V AC, 50/60 Hz (use of the supplied AC adapter) Power Consumption 74.4 W Current Consumption Max. 3.1 A DC (when 24 V DC is supplied from the accessory AC adapter) Gain Upstream: +16.5 dB Downstream: +12.5 dB Connection Terminal Central unit connection terminal: BNC

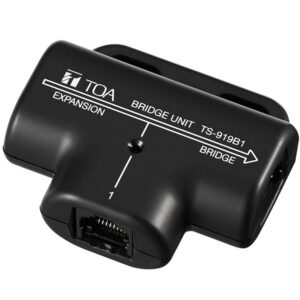

TS-919B1 Bridge Unit
Power Source 24 V DC (supplied from the TS-918 Expansion Unit (option)) Current Consumption Max. 16 mA Branching loss Upstream: 16.5 dB Downstream: 16 dB Insertion loss Upstream: 1 dB Downstream: 0.5 dB Connection Terminal Communication cable connection terminal: RJ45 connector × 2 Conference unit connection terminal: RJ45 connector LED

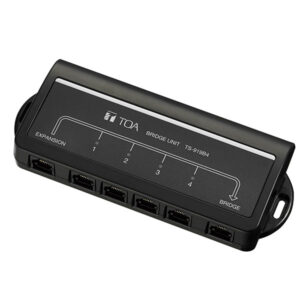

TS-919B4 Bridge Unit
Power Source 24 V DC (supplied from the TS-918 Expansion Unit (option)) Current Consumption Max. 26 mA Branching loss Upstream: 17.5 dB Downstream: 16.5 dB Insertion loss Upstream: 3 dB Downstream: 2 dB Connection Terminal Communication cable connection terminal: RJ45 connector × 2 Conference unit connection terminal: RJ45 connector ×

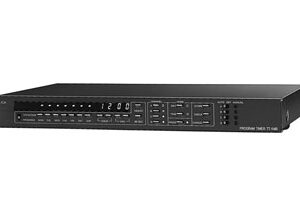

TT-104B 301H
Specification Power Source 220 – 240 V AC, 50/60 Hz Power Consumption 3 W Displayed Contents Day of the week, hour and minute Programmable Item Day of the week, hour, minute, output channel Number of Channels 4 channels (A,B,C,D) Output System No-voltage (DRY) make contact (5-second pulse make output)
TT-104B 304L
Specification Power Source 110 – 120 V AC, 50/60 Hz Power Consumption 3 W Displayed Contents Day of the week, hour and minute Programmable Item Day of the week, hour, minute, output channel Number of Channels 4 channels (A,B,C,D) Output System No-voltage (DRY) make contact (5-second pulse make output)
TT-104B 314L
Specification Power Source 110 V AC, 50/60 Hz Power Consumption 3 W Displayed Contents Day of the week, hour and minute Programmable Item Day of the week, hour, minute, output channel Number of Channels 4 channels (A,B,C,D) Output System No-voltage (DRY) make contact (5-second pulse make output) Output Capacity
TT-104B TET
Specification Power Source 110 V AC, 50/60 Hz Power Consumption 3 W Displayed Contents Day of the week, hour and minute Programmable Item Day of the week, hour, minute, output channel Number of Channels 4 channels (A,B,C,D) Output System No-voltage (DRY) make contact (5-second pulse make output) Output Capacity
